Introduction

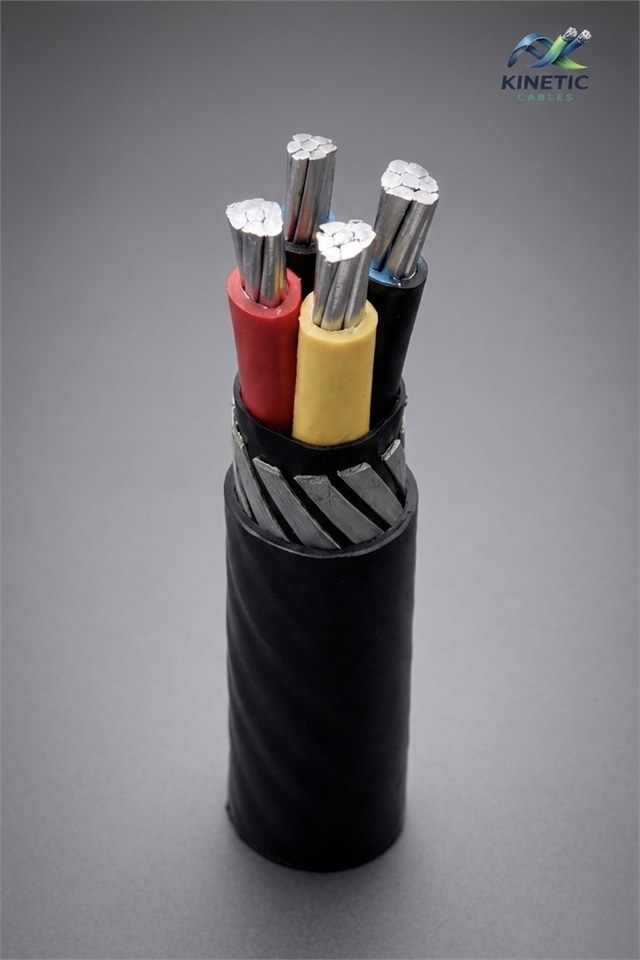

Kinetic Cables manufactures multi-purpose Aluminium Armoured Cables in various core and size configurations under strict in-house quality control. Our aluminium SWA cables are available in 2, 3, and 4 core variants across a wide range of conductor sizes, making them suitable for virtually every underground and armoured power distribution application in industrial, commercial, and infrastructure projects across India.
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Type | Aluminium Armoured Cable |
| Cores Available | 1 Core, 2 Core, 3 Core, 4 Core |
| Sizes Available | 6 sq.mm to 630 sq.mm |
| Conductor | Aluminium (EC Grade) |
| Insulation | XLPE / PVC |
| Armouring | Galvanized Steel Wire (SWA) or Strip (STA) |
| Voltage Grade | 1100V (1.1 kV) |
* Specifications may vary as per customer requirements and applicable IS standards.
Applications
- ◆Underground power distribution (residential/commercial/industrial)
- ◆Industrial plant main supply feeders
- ◆Outdoor and exposed cable routes
- ◆Utility underground distribution network
- ◆Infrastructure projects – roads, railways, airports
Advantages
- ✓Full range of core counts and sizes in one source
- ✓Steel wire armour for maximum mechanical protection
- ✓Suitable for corrosive and moist environments
- ✓XLPE insulation for higher load capacity
- ✓Cost-effective aluminium conductor
Manufacturing Quality at Kinetic Cables
At Kinetic Cables, we use:
- ▸EC grade aluminium stranded conductors
- ▸XLPE or PVC insulation for reliable performance
- ▸Hot-dip galvanized SWA or steel tape armour
- ▸Black PVC outer sheath with UV resistance
Each batch undergoes mechanical and electrical testing to ensure compliance with national standards.
Why Choose Kinetic Cables?
- ★One-stop source for all armoured cable sizes
- ★Manufactured under strict in-house quality control
- ★Bulk quantities for large infrastructure projects
- ★Custom configurations and drum lengths
Frequently Asked Questions (FAQ)
Common questions about Aluminium Armoured Cable
We supply 1-core, 2-core, 3-core, and 4-core aluminium armoured cables in sizes from 6 sq.mm to 630 sq.mm per core.
SWA (Steel Wire Armoured) uses individual steel wires for armour; STA (Steel Tape Armoured) uses steel tape. SWA provides better crush resistance; STA is used for lighter protection needs.
Yes. The PVC outer sheath and galvanized armour provide protection in moist, chemical, and corrosive environments.
We manufacture aluminium armoured cables up to 630 sq.mm per core for high-power distribution applications.
Yes. Each drum of armoured cable is accompanied by batch inspection documentation verifying our in-house quality checks.
